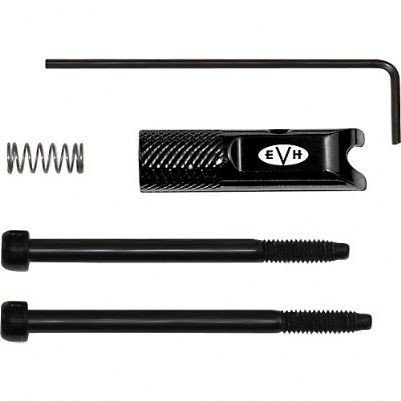

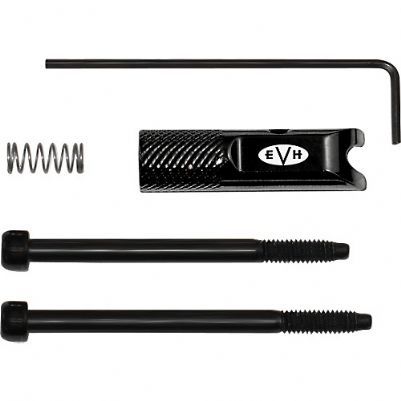

EVH D-Tuna Black Stabilize Köprü
E'den D'ye ve anında geri dönmenizi sağlar
Kullanımı kolay
Çift kilitli tremoloya uyum sağlamak için tasarlanmıştır
En kaliteli sertleştirilmiş çelikten imal edilmiştir
Item Weight 3.2 ounces
Product Dimensions 6.2 x 4.2 x 0.5 inches
If your bridge is flush mounted against the body of your guitar (does not pull up) you can skip this step.
If your bridge "floats," then it must be stabilized. There are two different ways to do this. The easiest way is to "block" the bridge so it doesn't pull up. Use a shim or wedge on the block of the bridge in the tremolo cavity. Make it snug so that the tremolo base plate is level with the body and will not pull back.
The other option to stabilize and still be able to "pull up" on the bar is to install a tremolo stabilizer or stopper. There are many options for this, please consult D-Tuna customer service for a personalized solution to meet YOUR needs best.
Remove the string locking screw from the low E-saddle on the bridge. Replace it with the new longer string locking screw, spring, and D-Tuna. Lock the E-string in place with the D-Tuna "out" in the "D" position. Next, back the fine tuner on the bridge all the way out so that it is just touching the long screw.
3. Tuning:
Tune the E-string to "D", lock the string at the nut, and fine tune the E-string to "D" with the bridge fine-tuner. Next, push the D-Tuna into the E position and fine tune to "E" with the setscrew adjuster on the D-Tuna. That's it!
